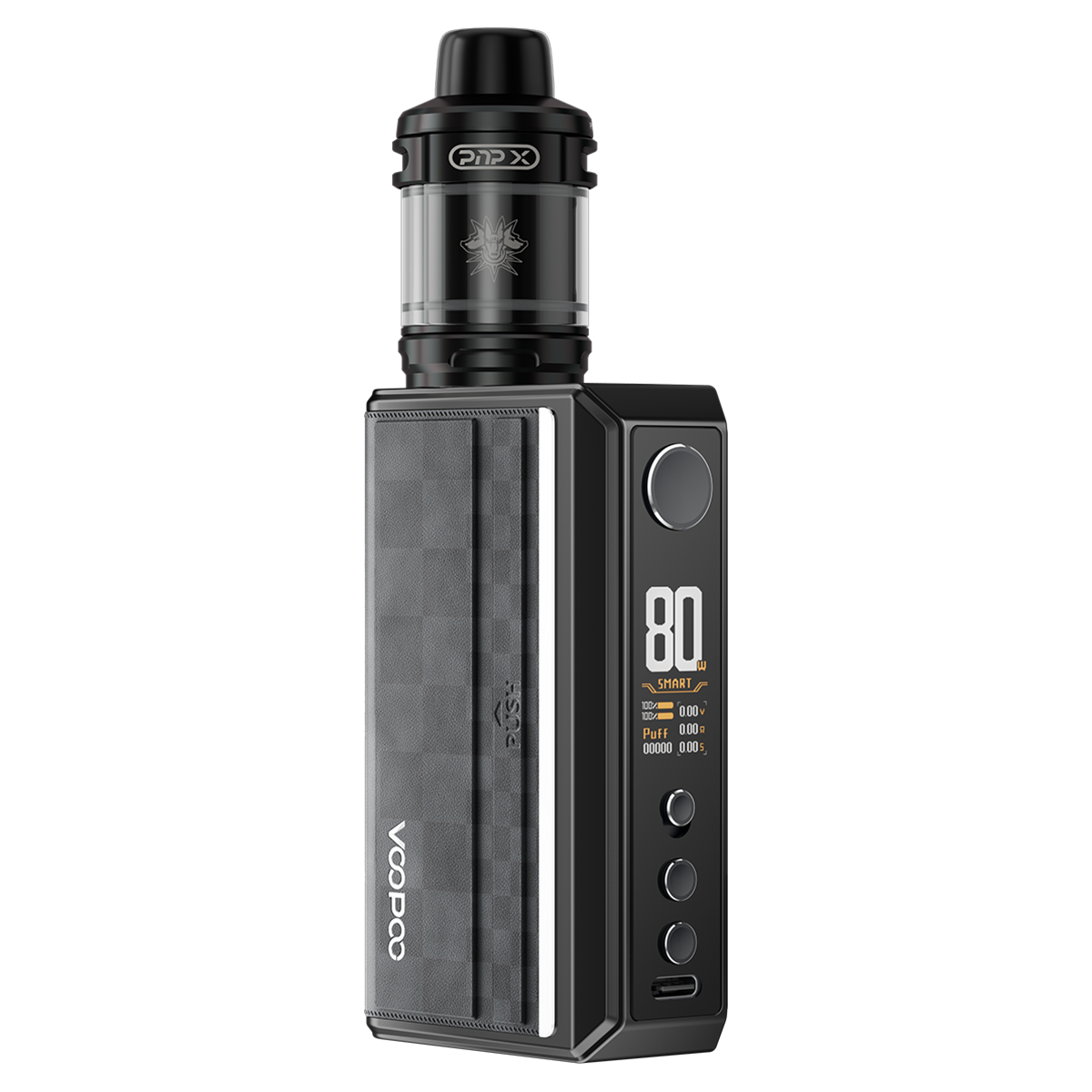

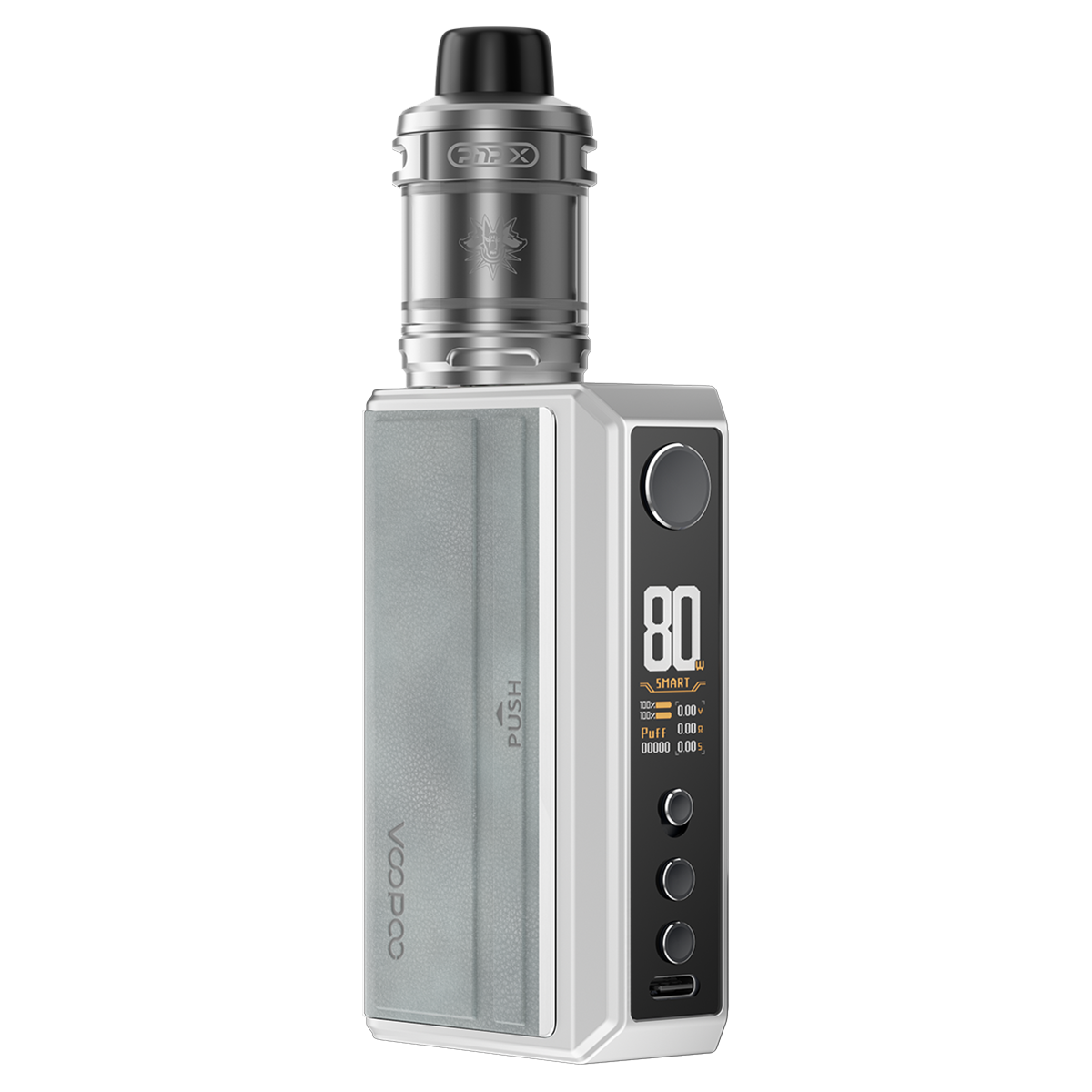

The VooPoo Drag 5 is a dual-18650 box-mod kit capable of 5–177W output. Paired with the 2ml UFORCE-X tank and PnP X coils, it is designed primarily for experienced direct-to-lung (DTL) customers who want replaceable batteries, multiple power modes and a conventional 510-connected tank.

VooPoo Drag 5 features

• Adjustable 5–177W output
• Requires two 18650 batteries, sold separately
• GENE.TT 2.0 chipset
• Smart, RBA, ECO and temperature-control modes
• 0.96-inch TFT colour screen
• 2ml UFORCE-X tank
• Slide top-filling system
• Adjustable top airflow
• PnP X coil compatibility
• USB-C 5V/3A charging support
• Smart C-frame battery cover

UFORCE-X tank, coils and e-liquid

The included 0.15Ω PnP X coil is rated for 60–80W and is intended for DTL vaping. The 0.3Ω option is rated for 32–40W and suits DTL or RDTL use. The UFORCE-X tank accepts the PnP X coil range and uses top air inlets to help reduce leakage. Use an appropriate 50–70% VG e-liquids with the supplied coils; high-VG shortfills are normally the better match at the higher outputs.

Power, batteries and refilling

Smart mode matches a suitable power range to the installed coil, while RBA mode opens manual wattage control. ECO mode reduces power demand and temperature-control mode is available for compatible wire types. Push the tank top to expose the fill port, refill and close it fully. Prime every fresh coil before use. Two matched 18650 cells are required and are not included; follow the battery and charger manufacturers’ guidance and do not mix cells of different ages or types.

Technical specifications

• Output power: 5–177W
• Battery: 2 x 18650 cells, not included
• Tank capacity: 2ml
• Connection: 510
• Charging: USB-C, 5V/3A
• Included coils: 0.15Ω and 0.3Ω PnP X
• Filling: slide top fill

Browse the VooPoo range, find compatible replacement pods and coils or shop shortfill e-liquids.

What is included?

• 1 x VooPoo Drag 5 mod
• 1 x 2ml UFORCE-X tank
• 1 x 2ml spare glass
• 1 x PnP X 0.15Ω coil
• 1 x PnP X 0.3Ω coil
• 1 x silicone seal pack
• 1 x USB-C cable
• 1 x user manual
• 18650 batteries are not included
